Inside an Air Conditioner Control Board Production Line: Through-Hole Assembly Process Explained

1. Introduction – Inside the Air Conditioner Control Board Production Line

Air conditioner control boards are the core electronic components that control the operation of HVAC systems. From temperature regulation to compressor control, these PCBs ensure stable and efficient performance.

In this video, we present a real production scenario from our factory, focusing on the through-hole insertion (DIP) section of the air conditioner control board assembly line. This stage is essential for installing electronic components that require strong mechanical stability and reliable electrical connections.

2. What Is the Through-Hole Insertion Process (DIP)?

Through-hole insertion, commonly known as DIP assembly, is a manufacturing process where electronic components are inserted into drilled holes on a printed circuit board (PCB).

Unlike surface-mount technology (SMT), through-hole components are mounted through the board and soldered on the opposite side, providing:

• Strong mechanical bonding

• High reliability for power components

• Better durability for industrial electronics

For air conditioner control boards, DIP components often include:

• Relays

• Power resistors

• Capacitors

• Connectors

• Transformers

3. Key Steps in the AC Control Board DIP Assembly Line

The through-hole assembly process typically includes several steps:

Component Preparation

Electronic components are organized and prepared according to the bill of materials (BOM).

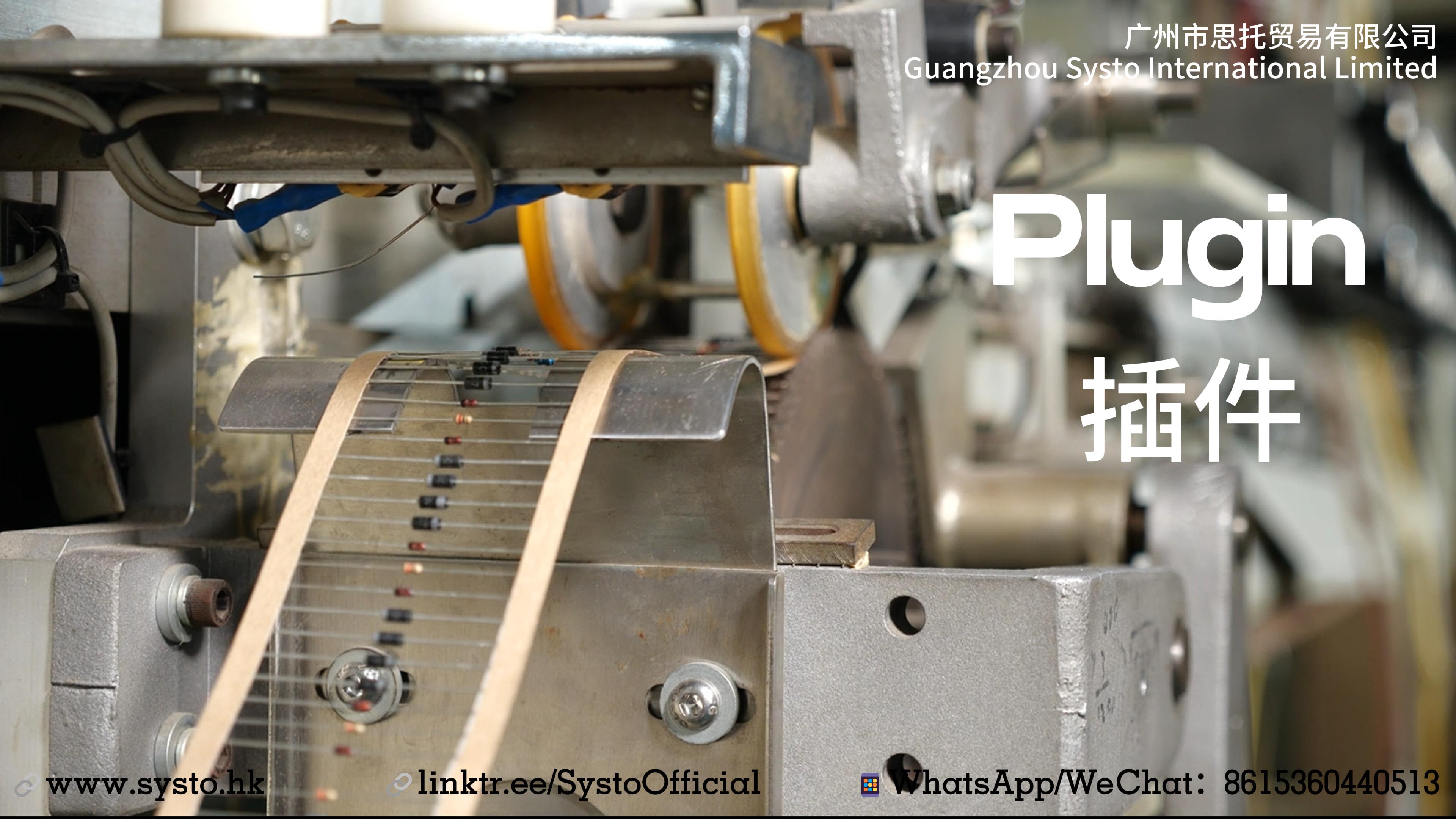

Manual or Automated Insertion

Operators or machines insert components into designated PCB holes.

Wave Soldering

After insertion, the boards pass through a wave soldering machine to create strong solder joints.

Visual Inspection

Each board undergoes quality inspection to ensure correct component placement.

Functional Testing

Finally, the control board is tested to verify electrical performance.

4. Why Quality Control Matters in AC Control Board Manufacturing

Quality control is essential for ensuring the long-term reliability of HVAC systems.

A professional manufacturing process includes:

• Component verification

• Soldering inspection

• Electrical testing

• Functional validation

These steps help prevent failures and ensure stable operation of air conditioning systems in different environments.

5. Behind the Scenes of a Professional HVAC Electronics Factory

This video provides a closer look at how modern air conditioner control boards are assembled in a professional manufacturing facility.

With advanced production equipment, experienced technicians, and strict quality standards, manufacturers can deliver reliable HVAC electronic components for global markets.

6. FAQs

1. What is an air conditioner control board?

An air conditioner control board is the main electronic circuit board that manages the operation of an HVAC system, including temperature control, compressor activation, and fan operation.

2. Why are through-hole components still used in HVAC electronics?

Through-hole components offer stronger mechanical support and better electrical reliability, making them ideal for high-power components used in air conditioning systems.

3. What is the difference between SMT and DIP assembly?

SMT mounts components directly onto the surface of a PCB, while DIP inserts components through holes in the board and solders them on the opposite side.

4. Why is wave soldering used in DIP assembly?

Wave soldering ensures consistent and reliable solder joints for multiple through-hole components at the same time.
