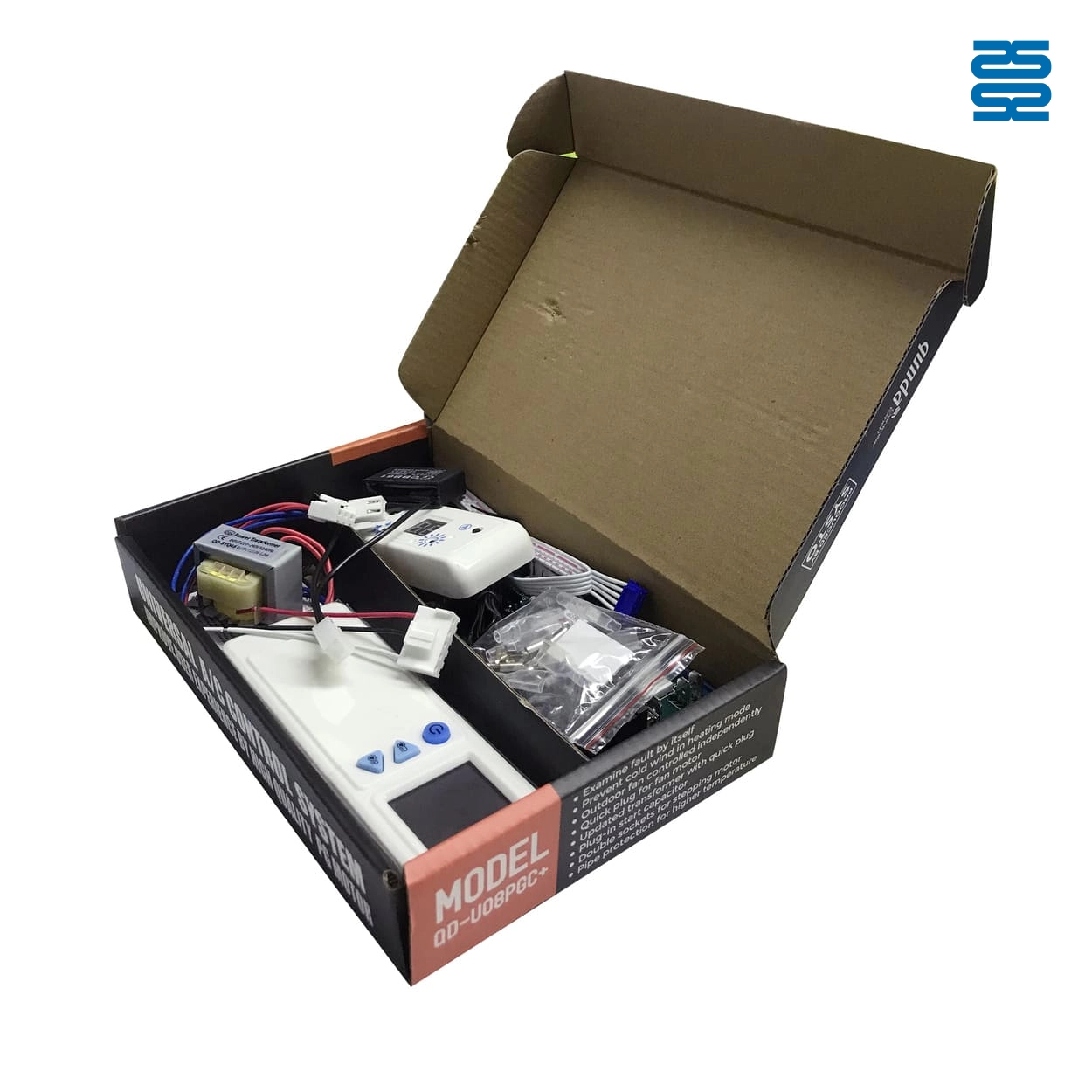

The Package of Universal Air Conditioner Control System QD-U08PGC+ - SYSTO

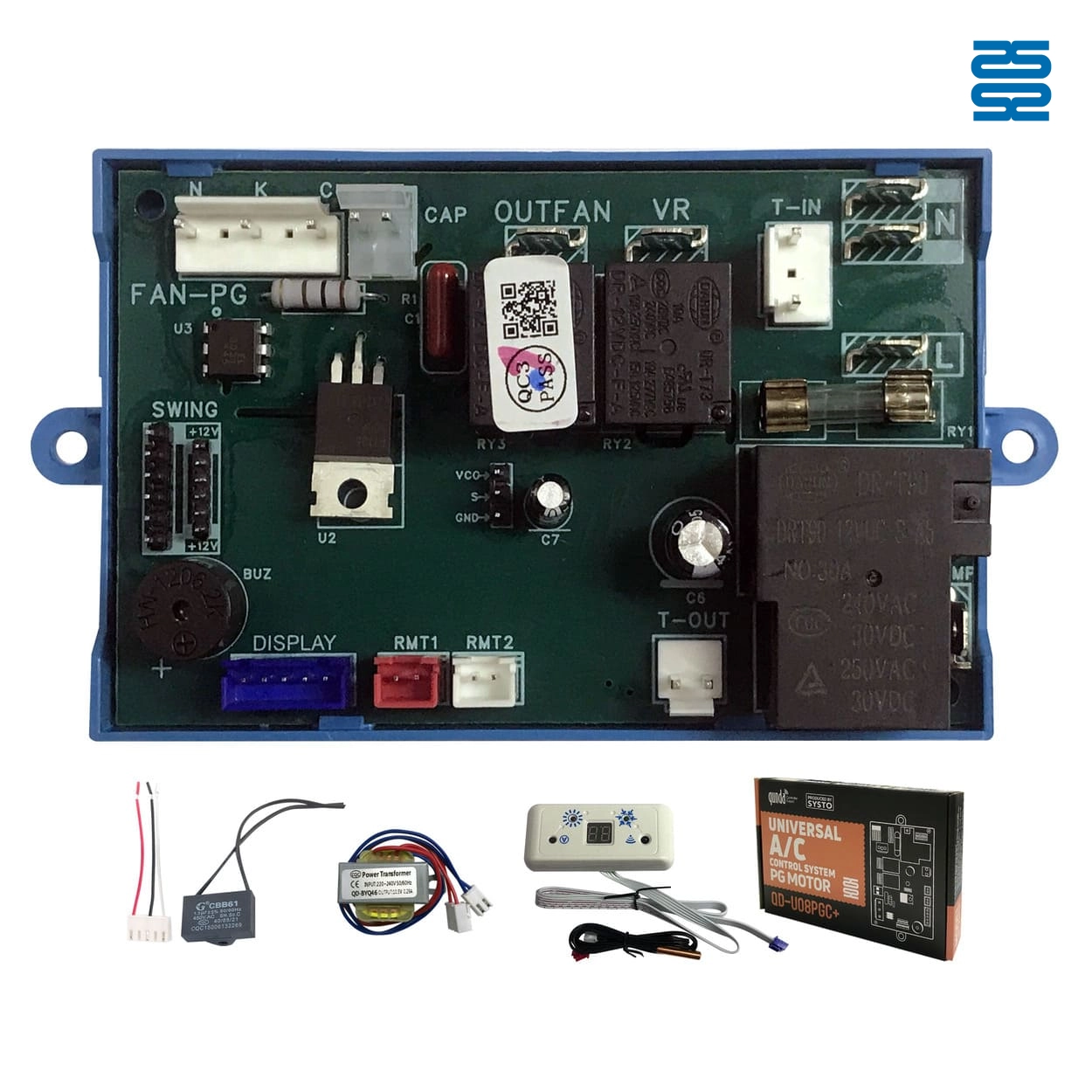

Universal Air Conditioner Control System QD-U08PGC+ - SYSTO

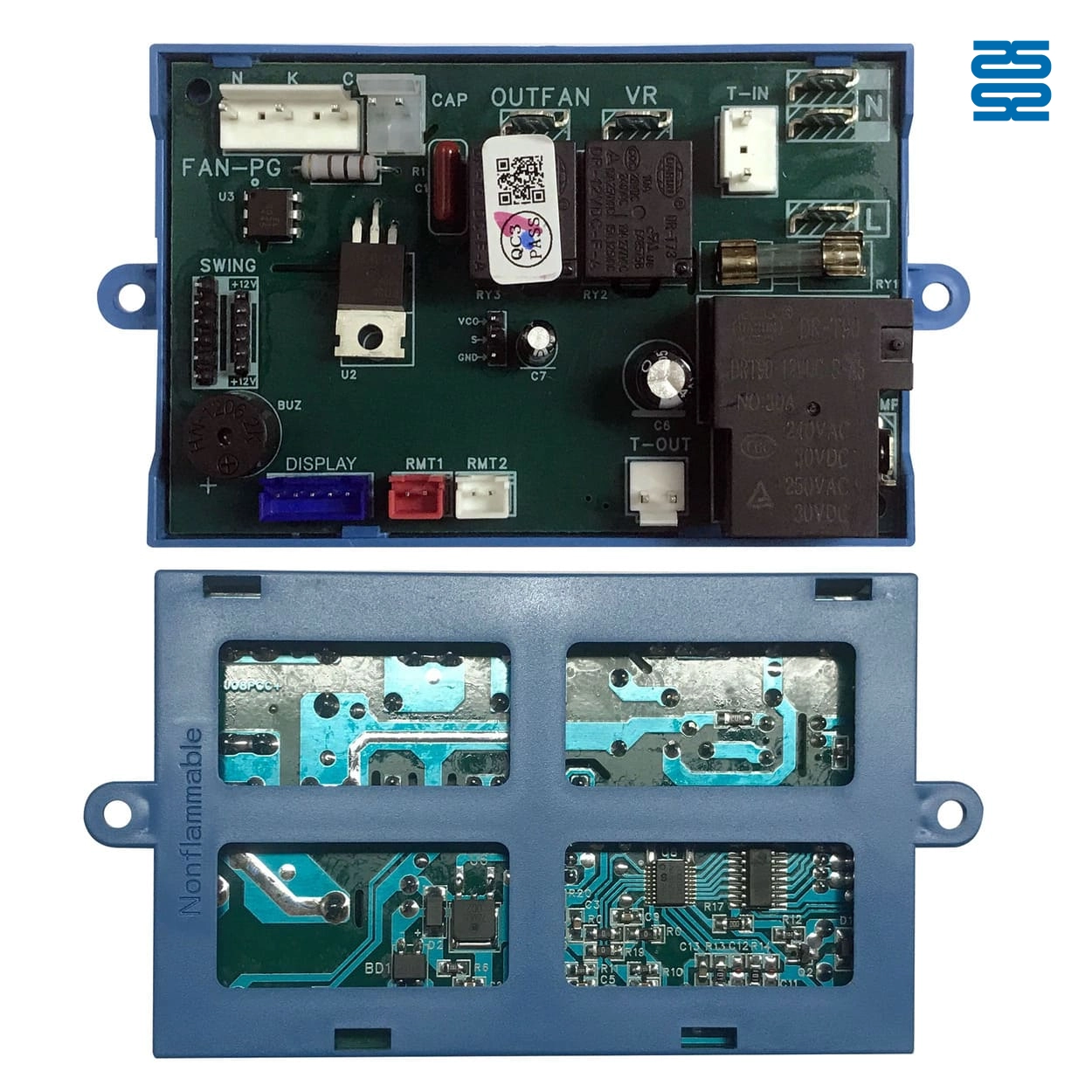

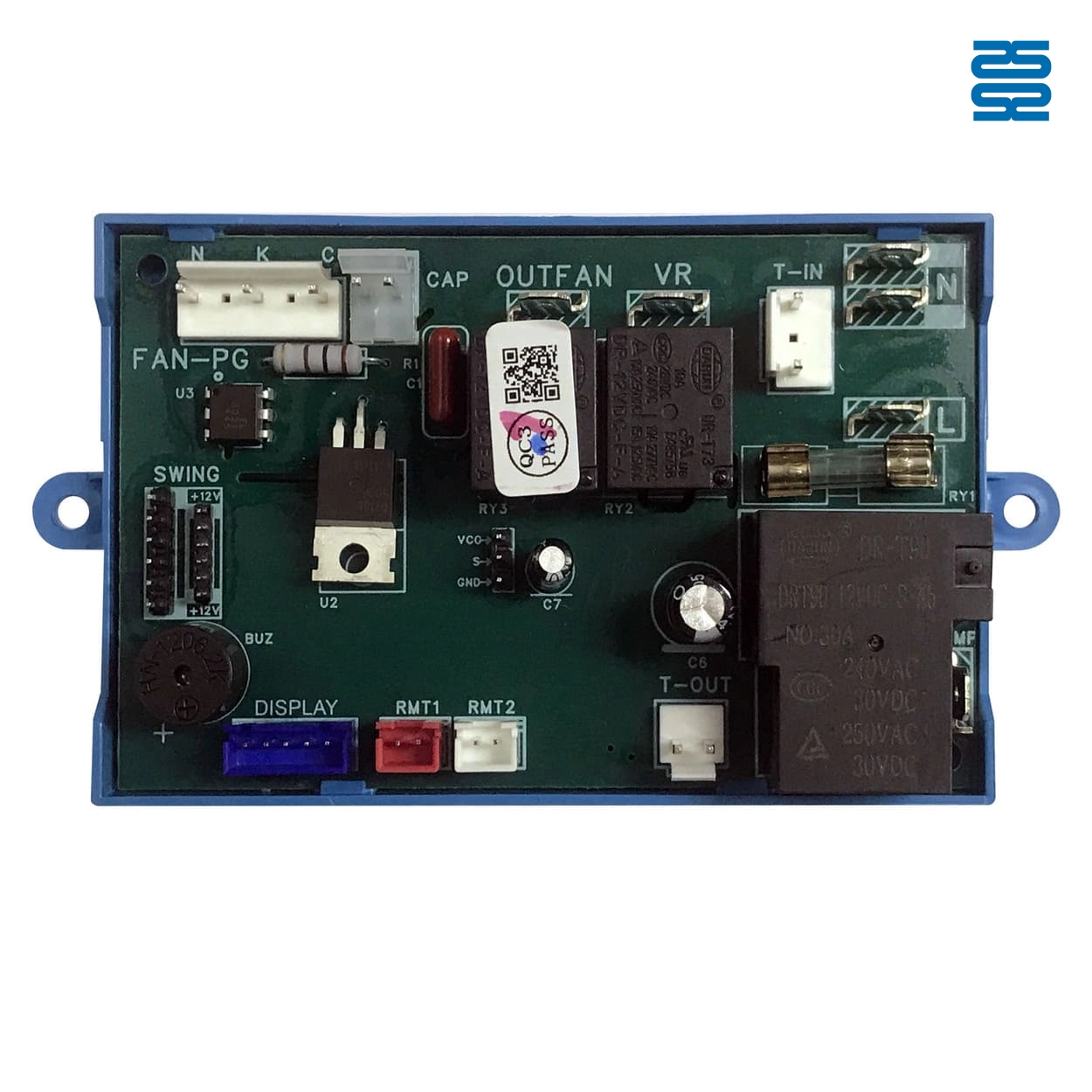

Universal Air Conditioner Control Board QD-U08PGC+

PG Motor Series Wall-Mounted Split A/C Units – Auto Fan, Digital Temperature Display

The QD-U08PGC+ Universal Air Conditioner Control Board is part of the advanced PG Motor Series, designed for wall-mounted split-type air conditioners.
It offers accurate digital temperature control, quiet unlimited fan speed, and independent outdoor fan management, ensuring stable performance across various AC brands.

With features like auto restart, sleep mode, auto defrost, and quick plug installation, this board delivers an intelligent, energy-efficient, and reliable control solution for modern HVAC systems.

Model

QD-U08PGC+

Power Supply

AC 220V ±10%, 50/60Hz

Motor Type

PG variable-speed motor

Display Type

Digital temperature display

Applicable Type

Wall-mounted split air conditioner

Series

PG motor series Universal Air conditioner control system

Get a Free Quote

Get the Product Catalog

Specifications

Model	Series	Applicable Type	Display Type	Motor Type
QD-U08PGC+	PG motor series Universal Air conditioner control system	Wall-mounted split air conditioner	Digital temperature display	PG variable-speed motor
Power Supply	Sleep Function	Auto Defrost
AC 220V ±10%, 50/60Hz	Supported	Supported

Features

◼01

PG Motor Control

Supports precise PG motor signal control for stable operation.

◼02

Digital Temperature Display

Real-time temperature feedback for accurate adjustment.

◼03

Independent Outdoor Fan Control

Ensures better temperature balance and efficiency.

◼04

Auto Restart Function

Automatically resumes operation after power failure.

◼05

Plug-in Start Capacitor Enclosed

Simplifies wiring and installation.

◼06

Unlimited Fan Speed & Low Noise

Smooth air output with minimal sound.

◼07

Double Socket Design

Supports dual stepping motors for convenient setup.

◼08

Accurate & Stable Temperature Control

Maintains comfort with intelligent sensing.

◼09

Auto Fan Function

Automatically adjusts fan speed according to temperature change.

◼10

Timer ON/OFF & Sleep Mode

Enhances energy-saving and user comfort.

◼11

Anti-Cold Air Protection (Heating Mode)

Prevents cold wind output during heating startup.

◼12

Pipe Overheat Protection

Automatically stops operation when over-temperature occurs.

◼13

Self-Diagnosis Function

Detects and displays system faults automatically.

◼14

Quick Plug Transformer Design

Enables fast assembly and easy replacement.

◼15

Automatic Defrost Function

Ensures smooth heating operation in cold environments.

Before

After

Customization Options

• Logo & Branding: Custom printing or labeling on PCB or receiver panel.
• Function Customization: Modify modes, temperature limits, or timing range upon request.
• Connector Type: Adaptable wiring and plug standards for global applications.
• Display & Receiver: Optional LCD or LED status display modules.
• Packaging: OEM box design and user manual customization supported.
