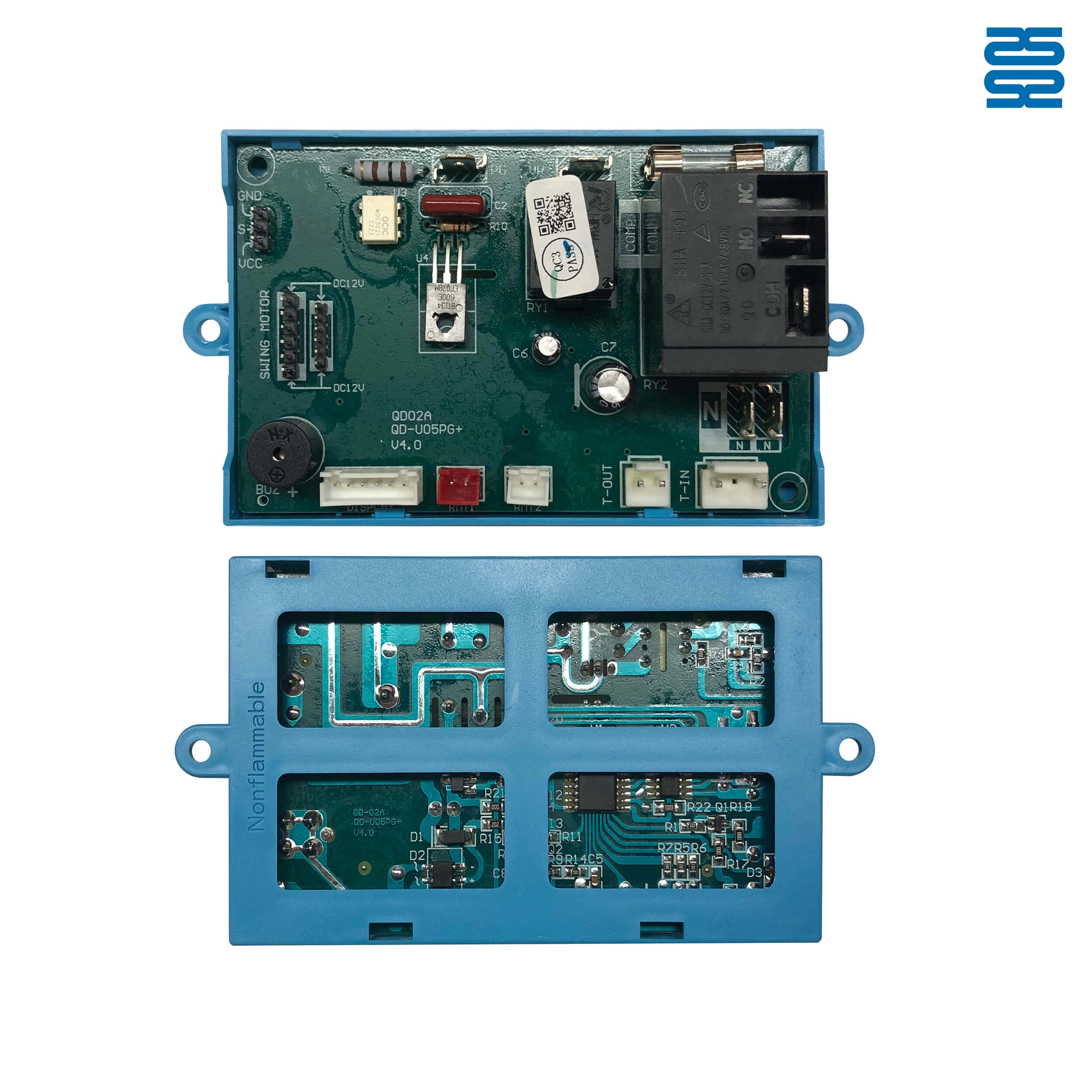

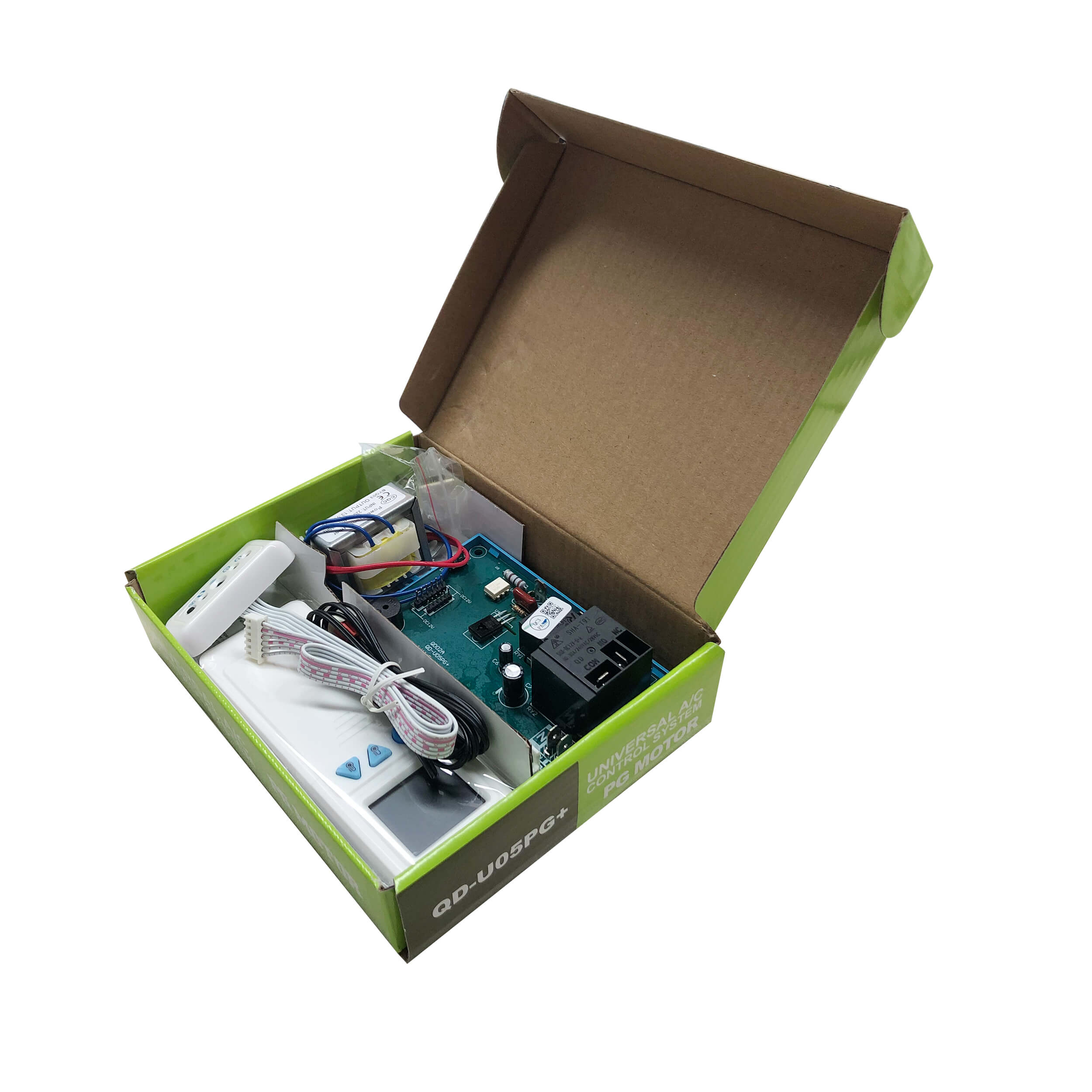

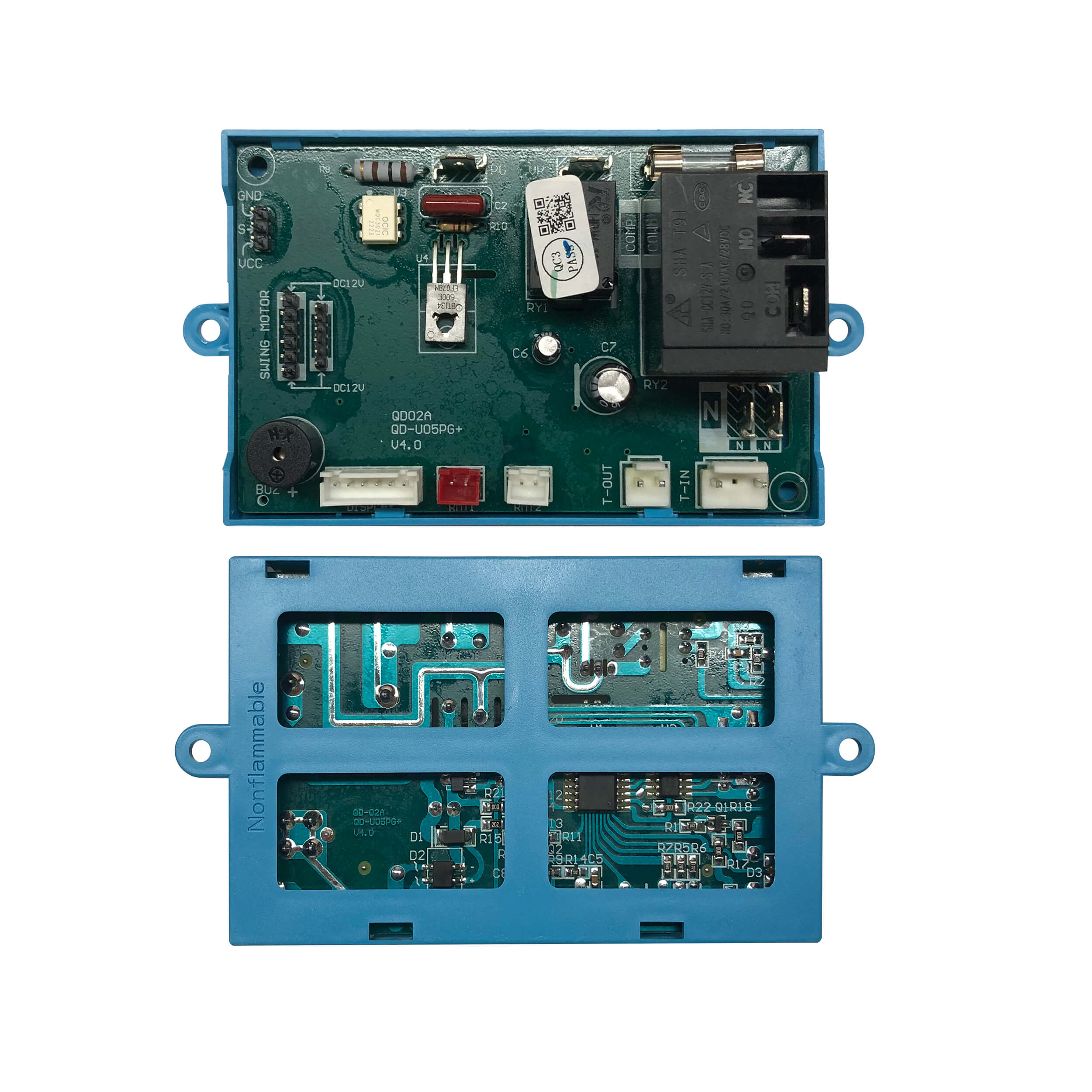

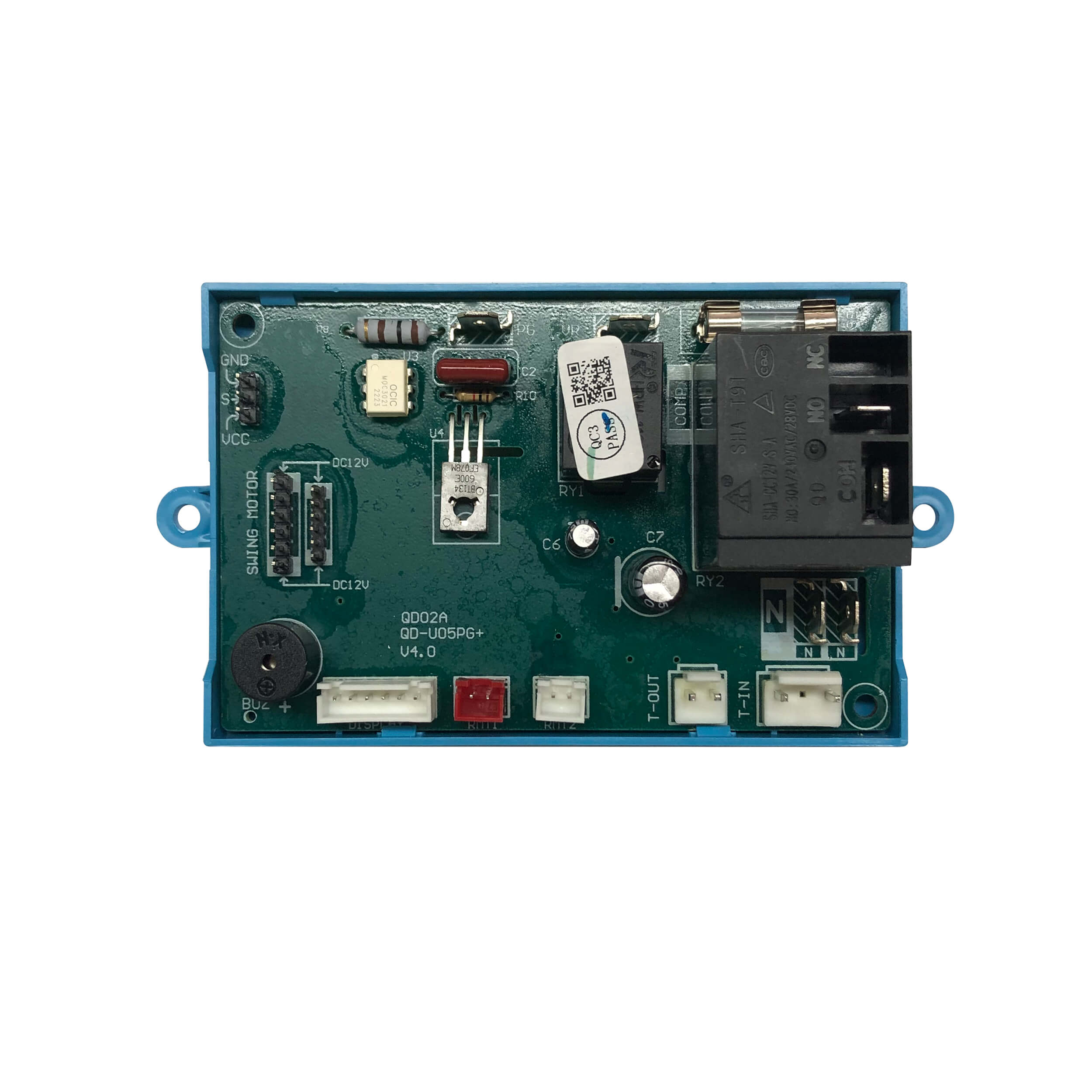

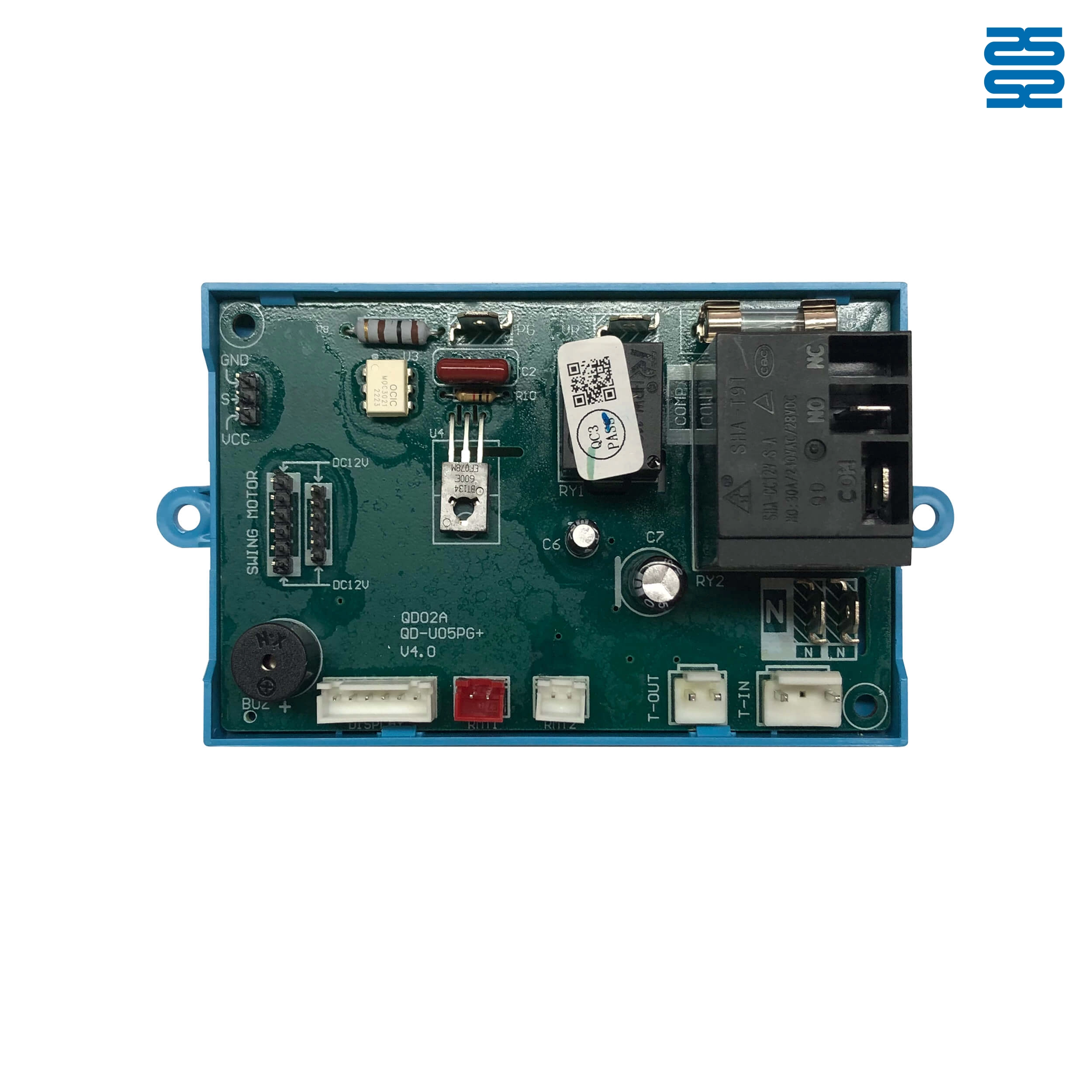

Qunda Universal Air Conditioner Control Board QD-U05PG+

PG Motor Series Wall-Mounted Split A/C Units – 5 Working Mode, No Class Fan Speed

Qunda Universal Air Conditioner Control Board QD-U05PG+ delivers reliable performance for various AC models. This pg motor air conditioner control system ensures precise temperature management and efficient operation, making it the ideal universal air conditioner control board for enhanced HVAC control.

Model

QD-U05PG+

Power Supply

AC 220V ±10%, 50/60Hz

Motor Type

PG variable-speed motor

Display Type

Led display

Applicable Type

Wall-mounted split air conditioner

Series

PG motor series Universal Air conditioner control system

Get a Free Quote

Get the Product Catalog

Specifications

Model	Series	Applicable Type	Display Type	Motor Type
QD-U05PG+	PG motor series Universal Air conditioner control system	Wall-mounted split air conditioner	Led display	PG variable-speed motor
Power Supply	Sleep Function	Auto Defrost
AC 220V ±10%, 50/60Hz	Supported	Supported

Features

◼01

PG Motor Control

Supports precise PG motor signal control for stable operation.

◼04

Auto Restart Function

Automatically resumes operation after power failure.

◼06

Unlimited Fan Speed & Low Noise

Smooth air output with minimal sound.

◼07

Double Socket Design

Supports dual stepping motors for convenient setup.

◼08

Accurate & Stable Temperature Control

Maintains comfort with intelligent sensing.

◼09

Auto Fan Function

Automatically adjusts fan speed according to temperature change.

◼10

Timer ON/OFF & Sleep Mode

Enhances energy-saving and user comfort.

◼11

Anti-Cold Air Protection (Heating Mode)

Prevents cold wind output during heating startup.

◼12

Pipe Overheat Protection

Automatically stops operation when over-temperature occurs.

◼13

Self-Diagnosis Function

Detects and displays system faults automatically.

◼14

Quick Plug Transformer Design

Enables fast assembly and easy replacement.

◼15

Automatic Defrost Function

Ensures smooth heating operation in cold environments.

Before

before - SYSTO

After

after - SYSTO

Customization Options

• Logo & Branding: Custom printing or labeling on PCB or receiver panel.
• Function Customization: Modify modes, temperature limits, or timing range upon request.
• Connector Type: Adaptable wiring and plug standards for global applications.
• Display & Receiver: Optional LCD or LED status display modules.
• Packaging: OEM box design and user manual customization supported.

FAQs - SYSTO

Frequently Asked Questions

Find answers to frequently asked questions quickly. If you have any further questions, feel free to contact us.

QD-U08PGC+

Is OEM customization available?

Yes, we support OEM/ODM customization for different control logic, panel design, and packaging.

What makes PG motor control special?

PG motors allow precise speed control, smoother airflow, and lower noise compared to traditional AC motors.

Is the transformer included?

Yes, an updated quick-plug transformer is enclosed for easy setup.

Does QD-U08PGC+ work with all wall-mounted air conditioners?

It supports most split-type wall-mounted units using PG motors. Please verify motor type before installation.
